Debian 9.5 join in Windows Active Directory Domain

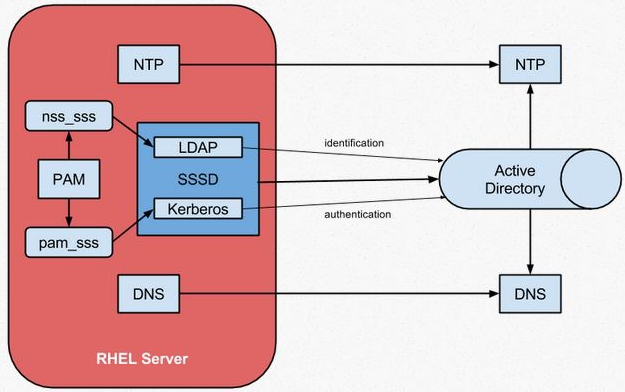

If you want to make Windows users access the Linux server, you must establish a connection to the Active Directory domain. The configuration will be made from the point of view of Linux Administrator. Configuring Windows Server leave for Windows administrators. The General scheme of connection operation is shown in the figure below.
You can use Winbind for authorization, but It requires the installation of a Samba server. In order to avoid this instead of Winbind, I used the SSSD service.
1. Install packages:
apt-get -y install ntp realmd adcli krb5-user packagekit sssd sssd-tools samba-common samba-common-bin samba-libs
2. Edit hostname
vim /etc/hostname
Add to file:
debian-ad
3. Edit hosts file:
vim /etc/hosts
Add line:
127.0.1.1 debian-ad.domain.local debian-ad
4. Add your DNS servers that are installed on domain controllers.
vim /etc/resolv.conf
Add to file:
domain domain.local
nameserver ip_address_domain1
nameserver ip_address_domain2
5. To communicate with Active Directory, the time must be identical on all servers. Edit /etc/ntp.conf
vim /etc/ntp.conf
server ip_address_domain1
server ip_address_domain2
Verify:
ntpq -p
6. Edit the Kerberos configuration file:
vim /etc/krb5.conf
Add to file:
[libdefaults]
default_realm = DOMAIN.LOCAL
...
[realms]
HYPERDEV.LOCAL = {
kdc = DOMAIN.LOVAL
admin_server = DOMAIN.LOCAL
default_domain = DOMAIN.LOCAL
}
...
[domain_realm]
.domain.local = DOMAIN.LOCAL
domain.local = DOMAIN.LOCAL
...
7. The first time a new user is authorized, a directory will be created in the /home directory. To do this, edit the pam configuration file and add the appropriate module to it:
vim /etc/pam.d/common-session
Add to file:
session optional pam_mkhomedir.so skel=/etc/skel umask=077
8. Domain discovery:
realm discover DOMAIN.LOCAL
9. Connect to the domain using the domain controller administrator login and password:
realm join -U admin_login domain.local
10. In order not to use the domain name when connecting and identifying the user, you must change the string in the SSSD configuration file:
vim /etc/sssd/sssd.conf
In the file, change the True parameter to False:
use_fully_qualified_names = False
11. To clear the cache, add a command to crontab that will be executed every minute:
crontab -e
Add to file:
* * * * * /usr/sbin/sss_cache -E
12. Restart sssd service:
/etc/init.d/sssd restart
13. Check the domain connection:
adcli info DOMAIN.LOCAL
14. Verify the active directory user:
root@debian-adt:~# id testuser
uid=1410202124(testuser) gid=1410200513(domain users) groups=1410200513(domain users)
